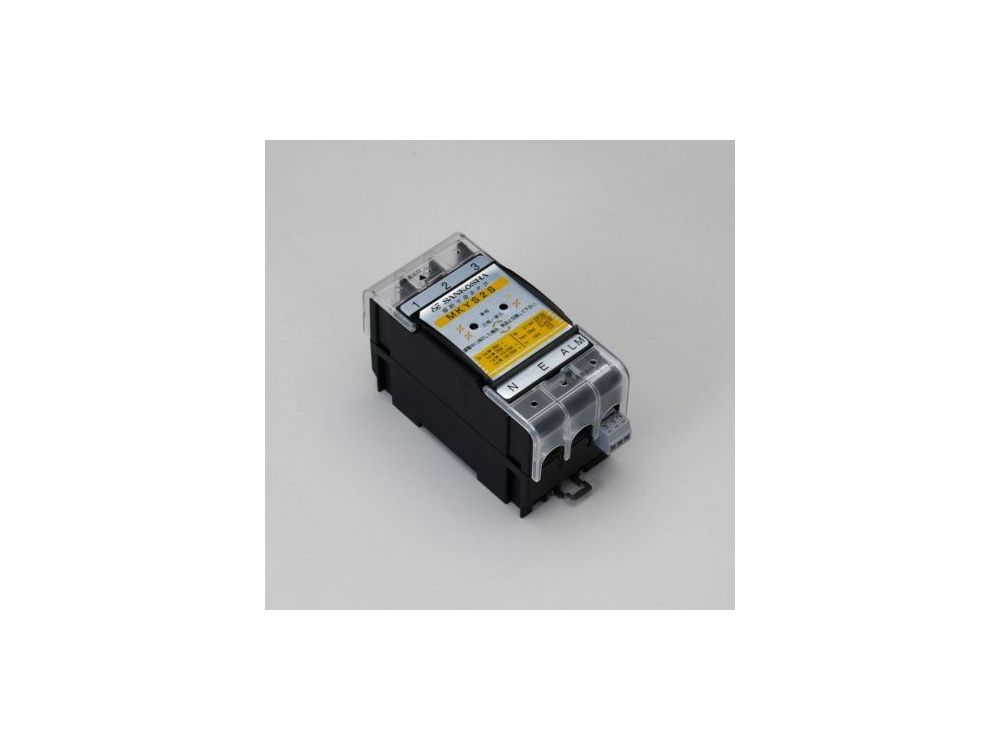

Lightning Protection SPD for power supply IEC Class II compliant

Description

IEC 61643-1/IEC 62305-4 compliant
RoHS compliant

Specifications

• Size 2-electrodes, width 50 mm (MKYS2 series, S4 series)
• A single unit provides protection across the wire and to ground.
• Suitable for single-phase two-wire to three-phase four-wire (MKY44series, S2series, S4series)
• Display function of deterioration (attached warning contact output terminal: S-type)
• Easy to install in distribution boards
• Mountable on DIN rail, can be attached with hinged mounting plate.
• With retractable terminal cover to prevent electric shock.

Application

• Low-voltage power supply circuits in switchboards and distribution boards (AC 100V/200V, 400V)
