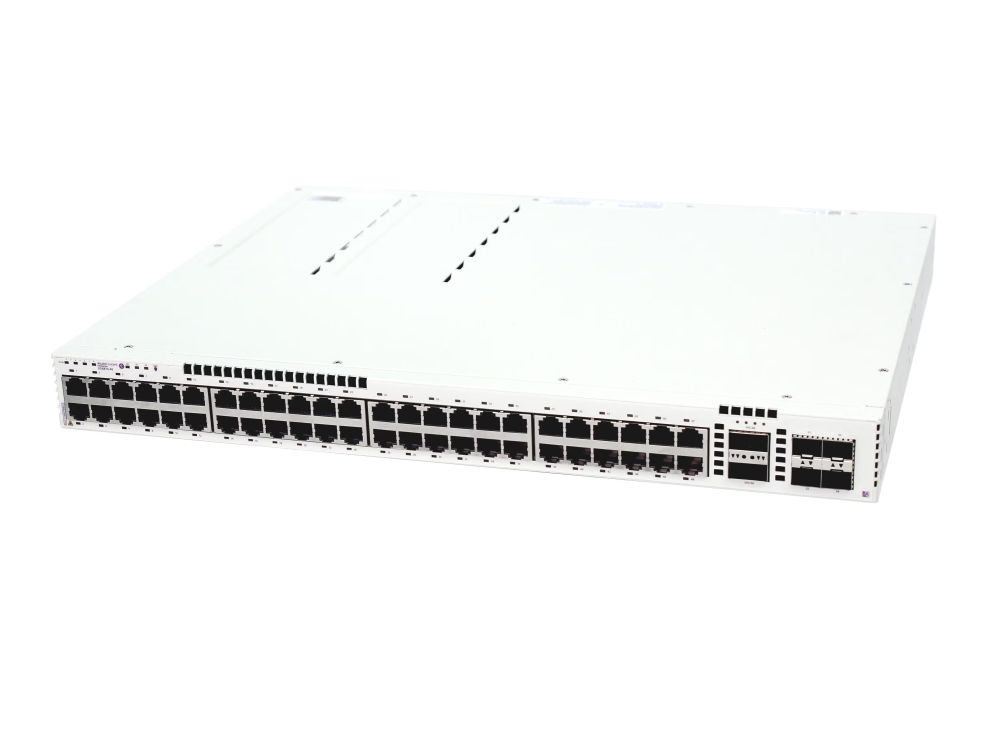

OS6870-48: Fixed chassis with 48x10/100/1000 RJ-45 2x100G QSFP28 VFL ports and 4x25G SFP28 ports

Description

The OmniSwitch 6870 combines versatile fabric support, strong security, and AI intelligence to create a flexible, secure, and low-maintenance platform tailored to meet a wide range of customer needs. This platform offers enhanced security, operational simplicity, and adaptable performance for the demands of modern network environments.

Specifications

• OmniFabric: SPB, VxLAN-EVPN2 and MPLS2
• Secure boot2
• Streaming network telemetry2 and DPI2
• 1588v2 End-to-End Transparent Clock
• Field replaceable redundant PSU both primary and backup
• Mix and match any supported PoE PSU redundancy to meet the PoE budget requirement while providing continues system operation
• The lowest power consumption level in similar class in term of wattage per switching capacity.
• Virtual chassis up to 8 with any model mix
• VFL stacking port can be used for uplink port in non-VC operation
• 1RU compact size with EMP (out-of-band management), console and USB ports
• Manage through Alcatel-Lucent OmniVista Cirrus Network Management System help visualize full wired wireless network to increase IT efficiency and business agility
