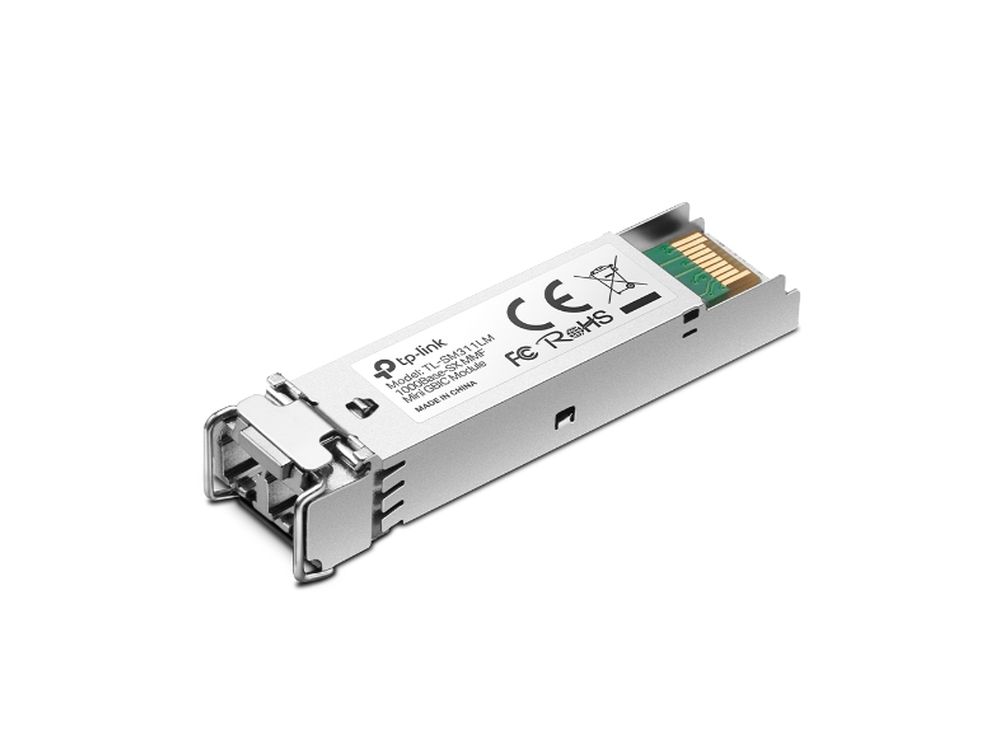

Gigabit Multi-Mode SFP Module SPEC: Multi-mode, MiniGBIC, LC Interface, Up to 550m/275m Distance

Beschrijving

Multimodale miniGBIC module
Toegepast op TL-SG3109/3216/3224, TL-SL3428/3452, TL-SG2109WEB/2216WEB/2224WEB, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351

Specificaties

• Standaarden en protocollen IEEE 802.3z, CSMA/CD, TCP/IP
• Golflengte 850nm
• Afmetingen (BxDxH) 2.2*0.5*0.5 in (55.4*13.7*12.9 mm)
• Voeding 3.3V
• Veiligheid en emissies FCC, CE
• Kabel Multi-mode Fiber
• Vezeltype 50/125μm or 62.5/125μm Multi-mode
• Maximale Kabellengte 550m
• Data Rate 1.25Gbps
• Port Type LC/UPC
• Omgeving Operating Temperature: 0℃~70℃ (32℉~158℉)
• Storage Temperature: -40℃~80℃ (-40℉~176℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
